This package combines a polished 1.5-litre swirl tank with a Barbarian 044-type pump and three AN6 fittings. It is intended to form the compact secondary reservoir and high-pressure pump section of a custom fuel system.

Key features

• 1.5-litre polished-aluminium swirl tank
• 044-type fuel pump
• Three AN6 fittings
• Pump rated to support applications up to 650 BHP
• Approximate tank size 15 × 15 × 20cm

Design details

The tank provides upper ports for lift-pump feed, tank return and rail return, with the external pump and fittings supplied as a matched package.

On the car

It brings the principal swirl-tank components together and supports consistent fuel delivery when the complete system is correctly designed.

Fitment notes

Use either a correctly arranged gravity feed or a lift pump. A return to the main tank is essential when pump-fed so air can escape and the swirl tank cannot pressurise.

Important: The pump colour may differ from older photographs. Fuel-system capacity must be matched to the engine’s pressure and flow requirements.

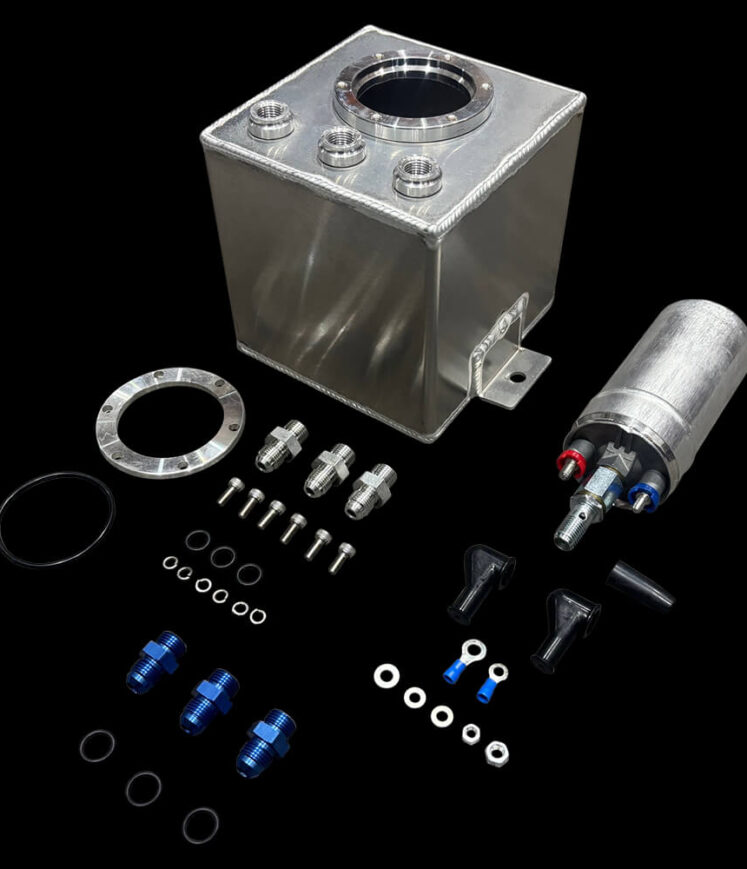

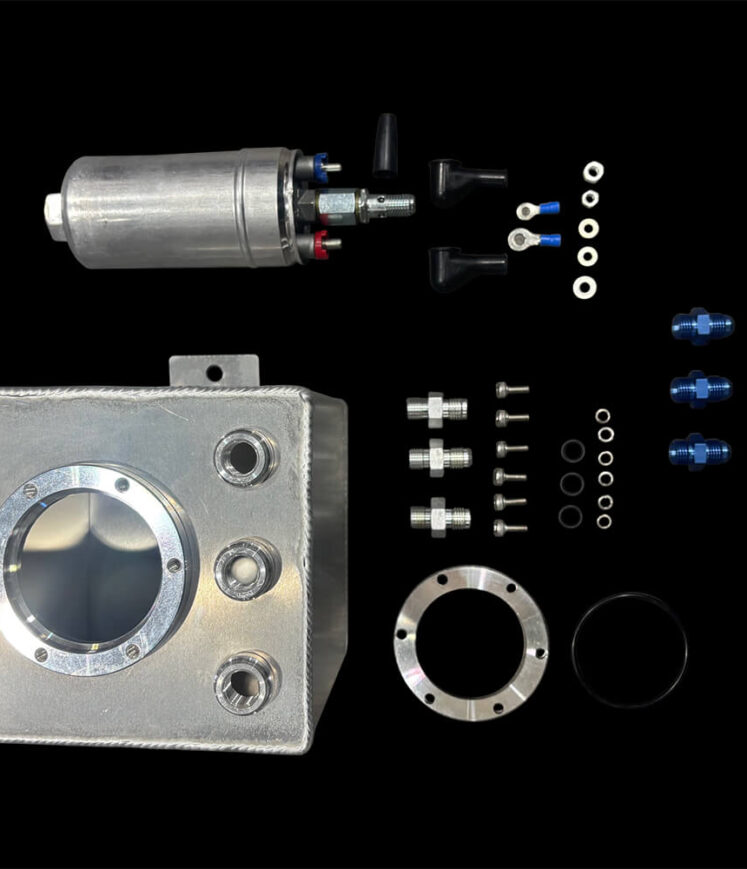

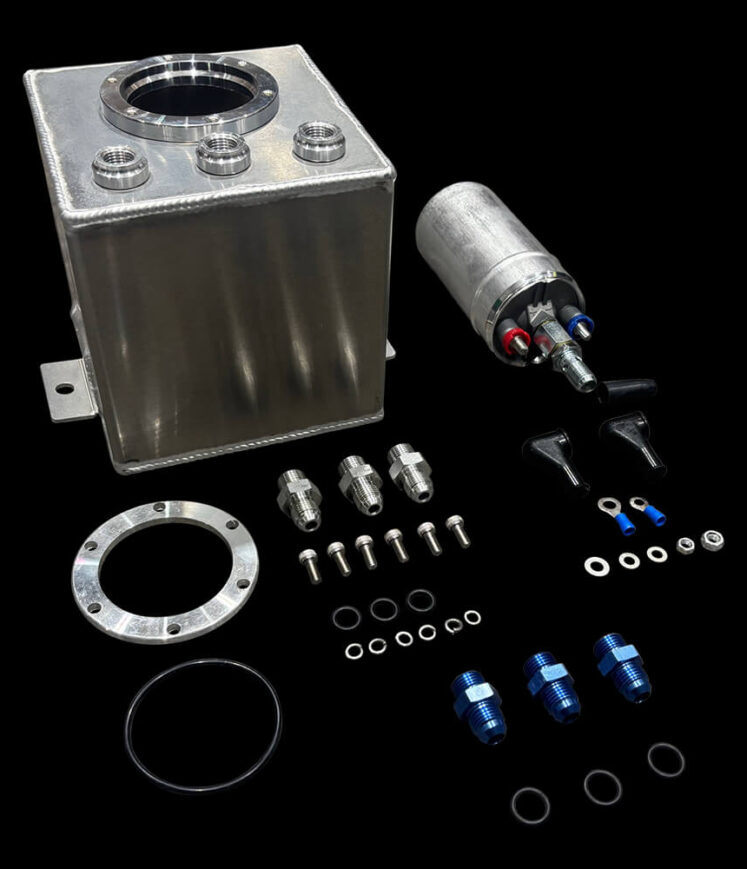

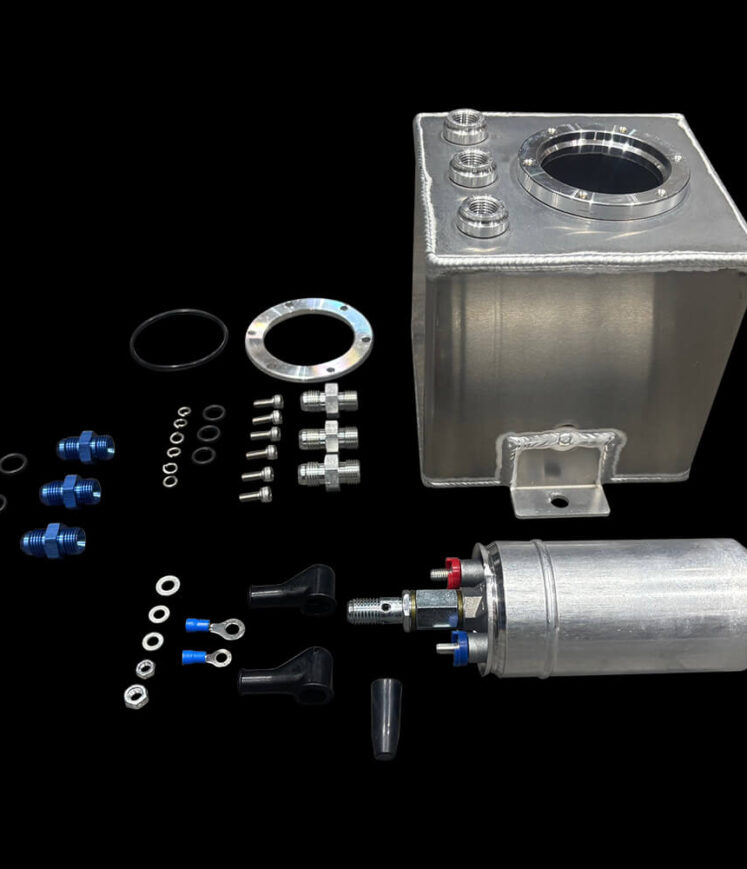

What’s in the box?

• 1 × 1.5-litre polished swirl tank
• 1 × 044-type fuel pump
• 3 × AN6 fittings
