This complete high-flow package combines a polished 2.5-litre swirl tank with two 044-type fuel pumps and three AN6 fittings. It is intended for fuel systems that need pump redundancy or substantially greater flow than a single-pump arrangement.

Key features

• 2.5-litre polished-aluminium swirl tank
• Two 044-type fuel pumps
• Three AN6 fittings
• Each pump rated to support applications up to 650 BHP
• Approximate tank size 15 × 15 × 30cm

Design details

The twin external pumps are supplied with the tank and fittings, leaving the installer to design the lift-pump feed, returns, filters, wiring and pressure control around the engine’s requirements.

On the car

The twin-pump layout provides substantial potential fuel capacity when the electrical and hydraulic system is correctly specified.

Fitment notes

Use adequately rated wiring, relays, filters, hose and fittings. Plan the return and venting arrangement, mount securely and leak-test the complete system.

Important: Pump colour may differ from older photographs. Combined pump capacity must be matched to the engine and regulator; do not select by BHP figure alone.

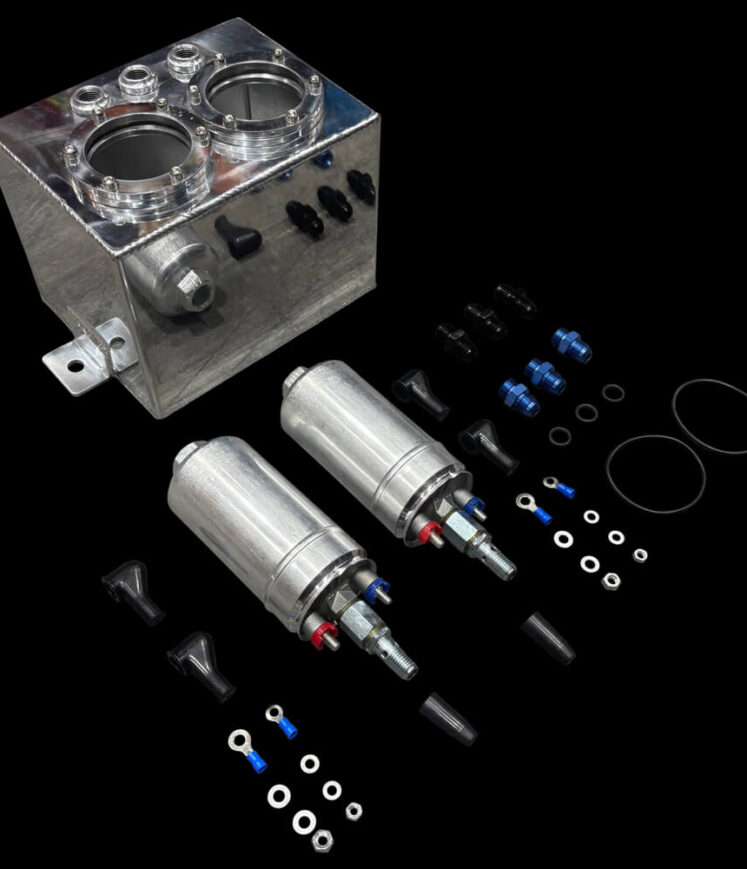

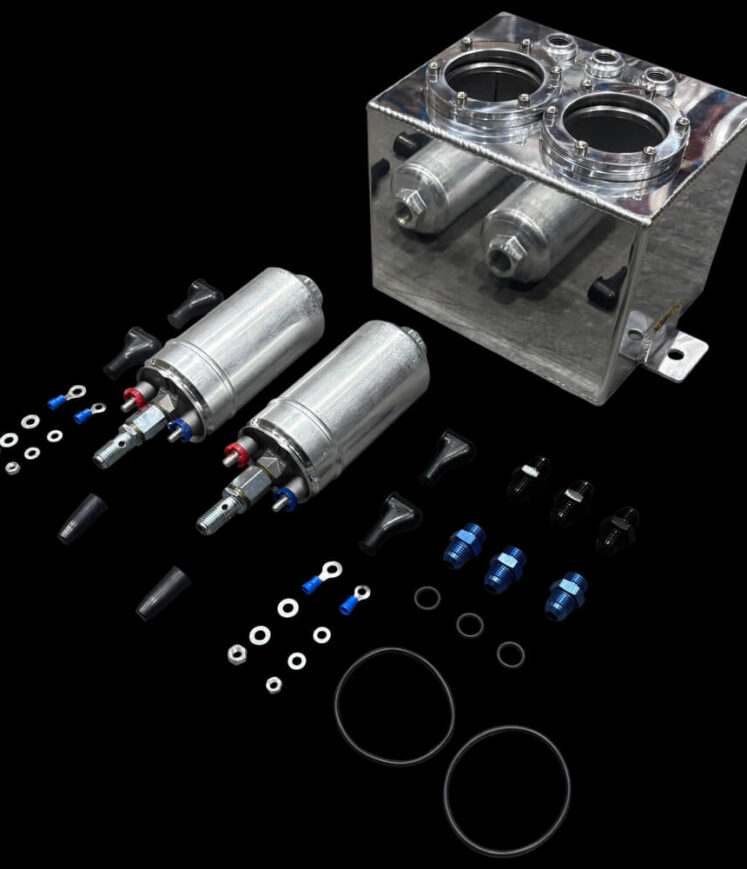

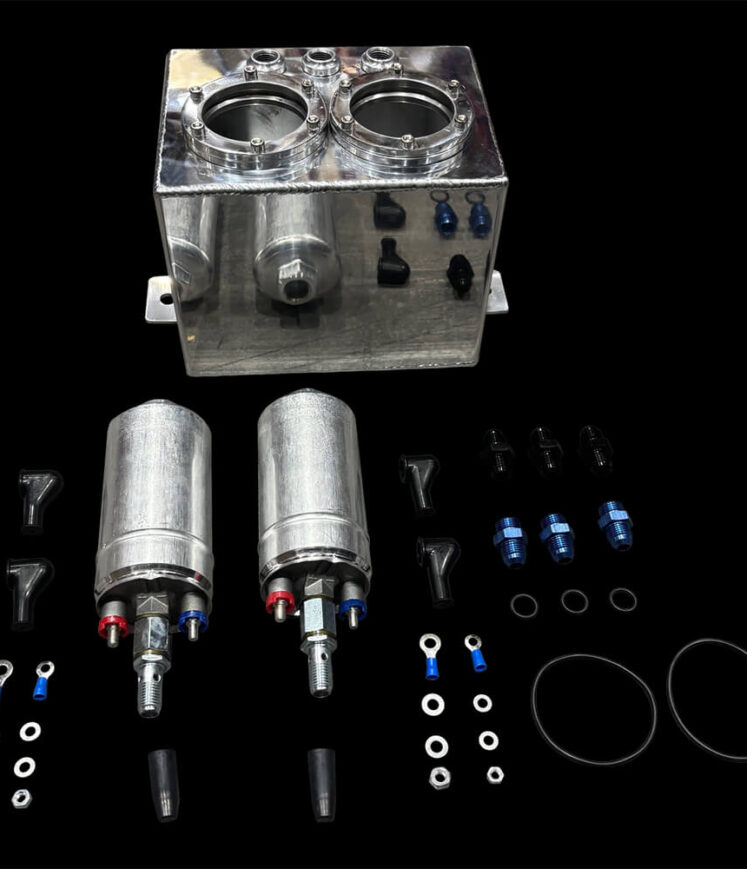

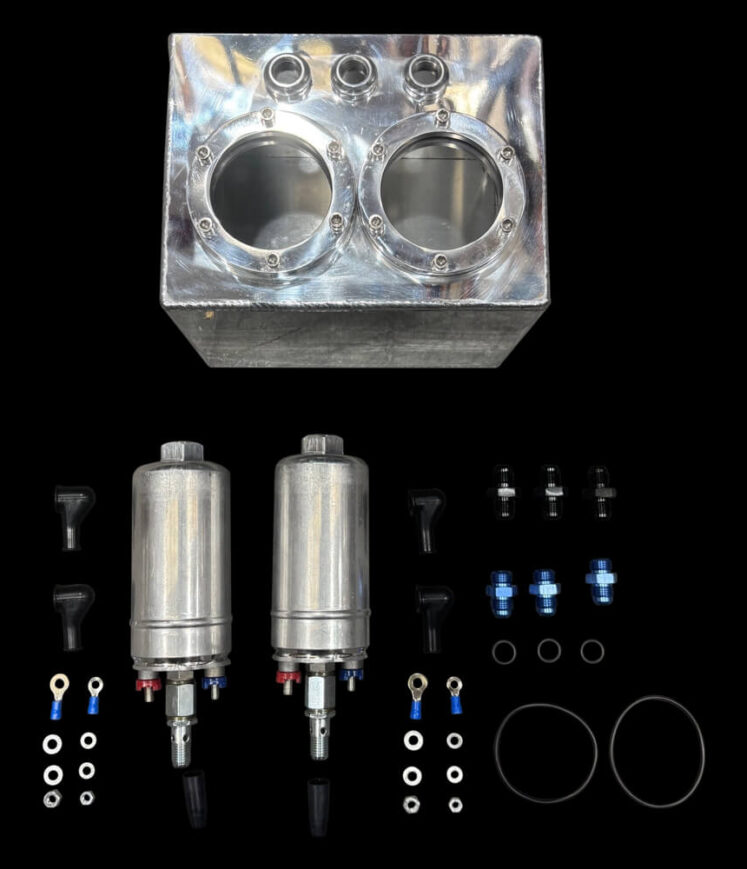

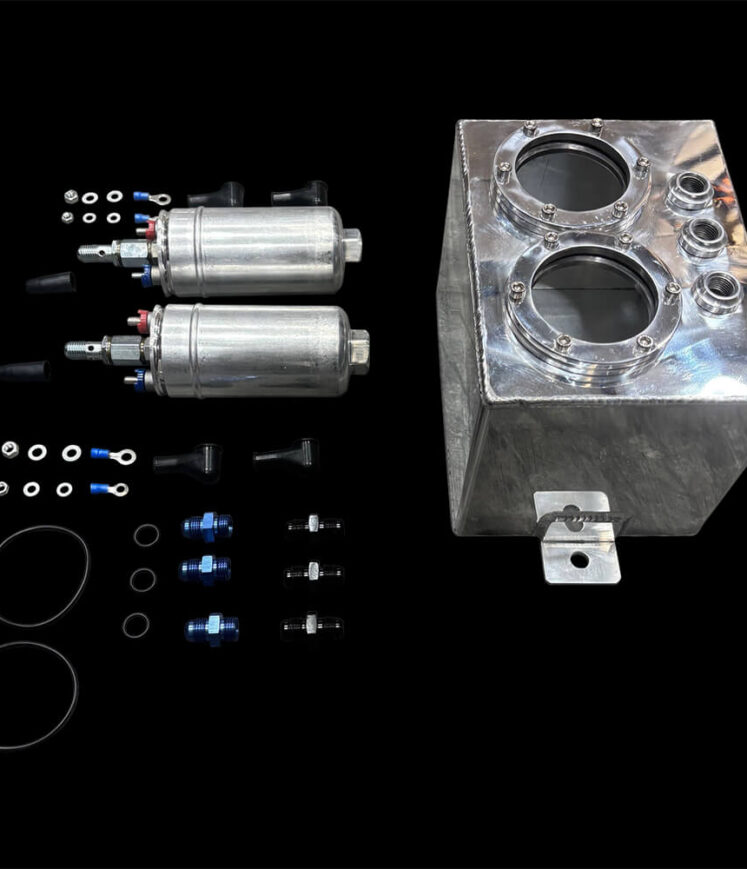

What’s in the box?

• 1 × 2.5-litre polished swirl tank

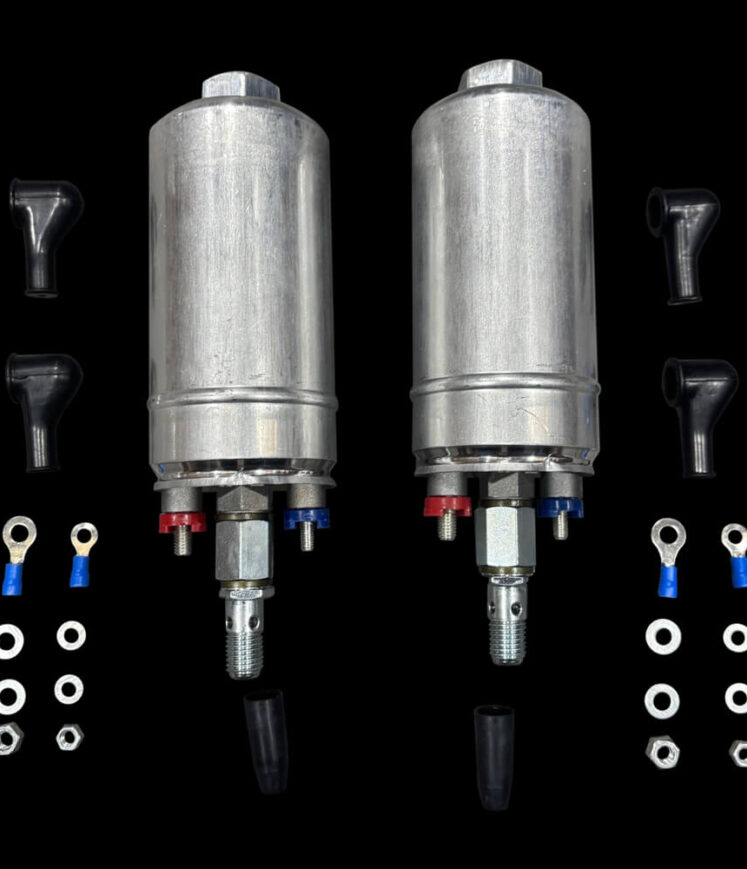

• 2 × 044-type fuel pumps

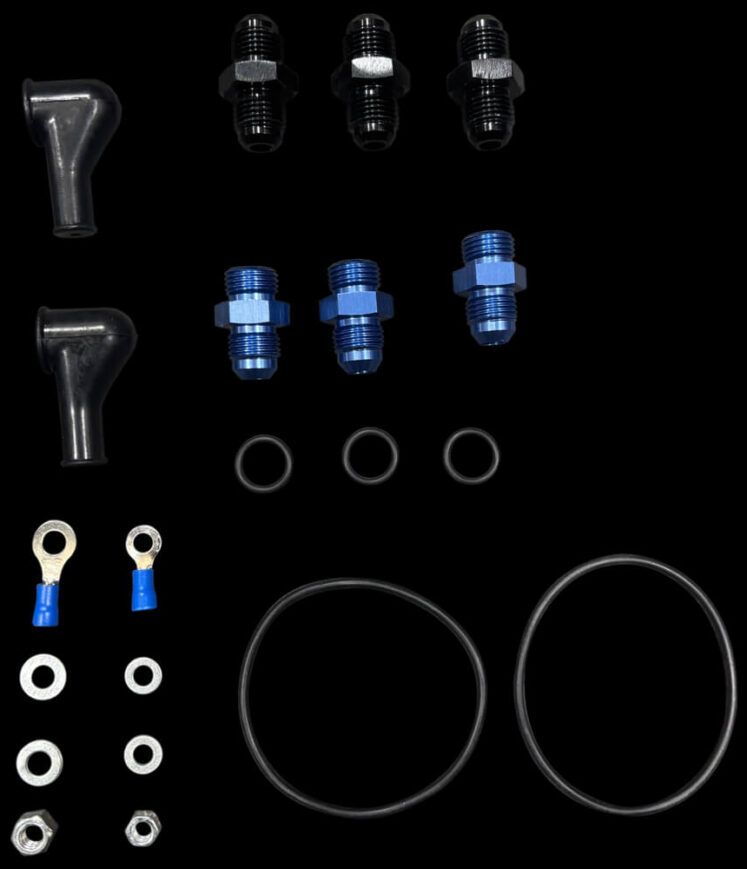

• 3 × AN6 fittings
