20mm Wheel Spacers for Mazda NA MX5 Mk1, Black, 89-98

A pair of wheel spacers for the NA MX5 Mk1 from 89-98.

These spacers are supplied as a kit and will space the wheels on the car by 20mm on each side. Made from 6061-T6 Aluminium and anodized black these spacers are corrosion resistant. Most of our spacers are hubcentric which means that they will be perfectly centred on the hub. Centering the wheel prevents vibration. See the specification below to confirm if these are hubcentric.

Spacing the wheels on the car gives a more aggressive stance and can also improve handling.

Spacer Specification:

Colour – Black
Thickness – 20mm
PCD – 4 x 100
Spigot – 54.1
Hubcentric – Yes
Material – 6061-T6 Aluminium
Finish – Anodized
Construction – Forged
Thread – M12 x 1.5

Vehicle Specification:

Make – Mazda
Model – MX5 Mk1
Chassis – NA
Year – ’89-98
Note – n/a

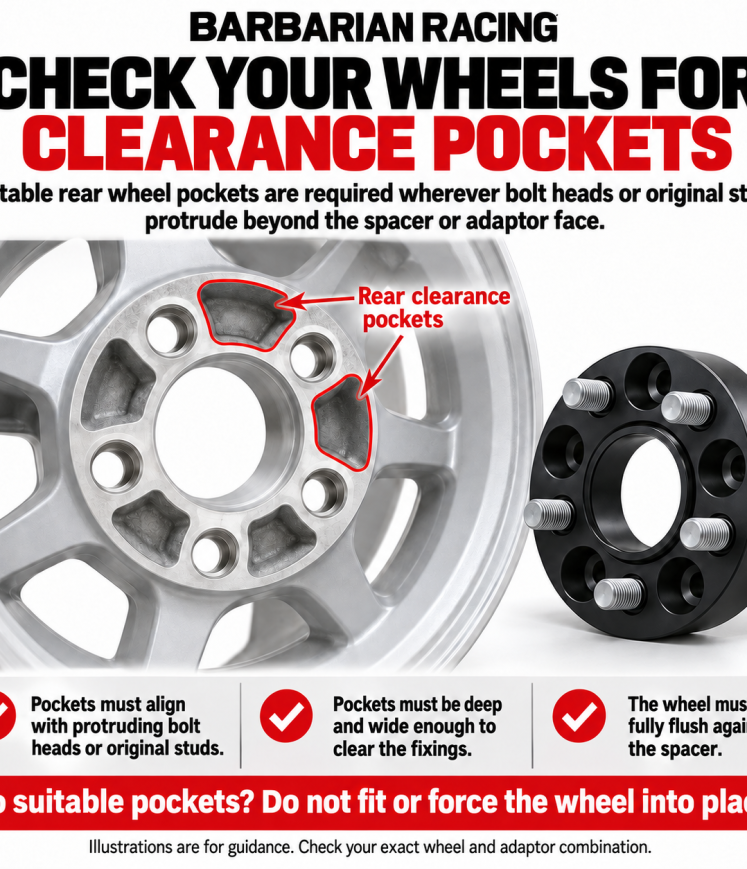

Clearance Checking

– When fitting spacers it is important to ensure there is enough space in the wheel arch to clear the wheel and tyre. If there is not sufficient space to fit the spacers safely you will need to either roll the arches or modify the arches with a wide arch kit or similar.

– It is also vital that you check the wheel rotate freely after fitted and if using closed wheel nuts that they are not bottoming out on the studs.
