Mazda MX5/Miata Mk1 1.8 Race Equal Exhaust Manifold, 94-96
Mazda MX5/Miata Mk1 1.8 Race Equal Exhaust Manifold, 94-96
Mazda MX5/Miata Mk1 1.8 Race Equal Exhaust Manifold, 94-96
Important fitment information
Important: Designed to optimise flow and power. For cars with the 440mm cat fitted. May require water pipe to heater core to be adjusted, ask for video if required. Does not fit the later 1997–98 1.8 135 hp model.

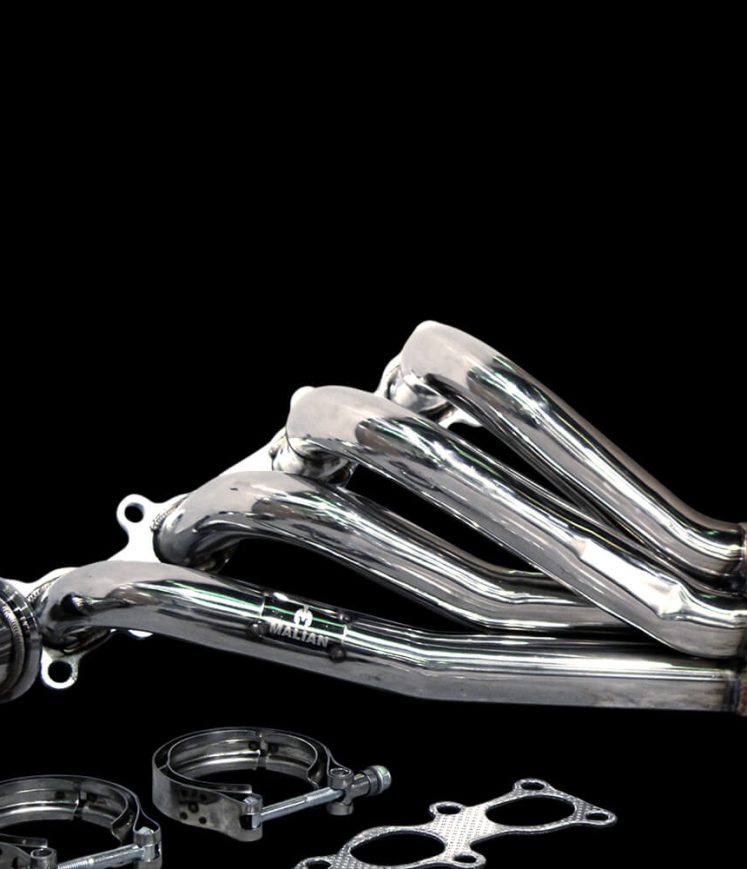

Designed around 94–96 Mazda MX5 / Miata / Eunos Roadster Mk1 (NA) with the 1.8 engine (BP), this equal-length tubular manifold uses closely matched runner lengths for balanced exhaust pulses at the collector.
Key features
- Equal-length tubular runner layout
- 1.75″ to 2.5″ pipework · Stainless Steel construction · TIG-welded joints
- Fitting kit included
Important fitment information
The heater-core water pipe may require adjustment; refer to the fitting video before installation.
Check steering-side clearance, gasket faces, heat management and the downstream connection during installation.

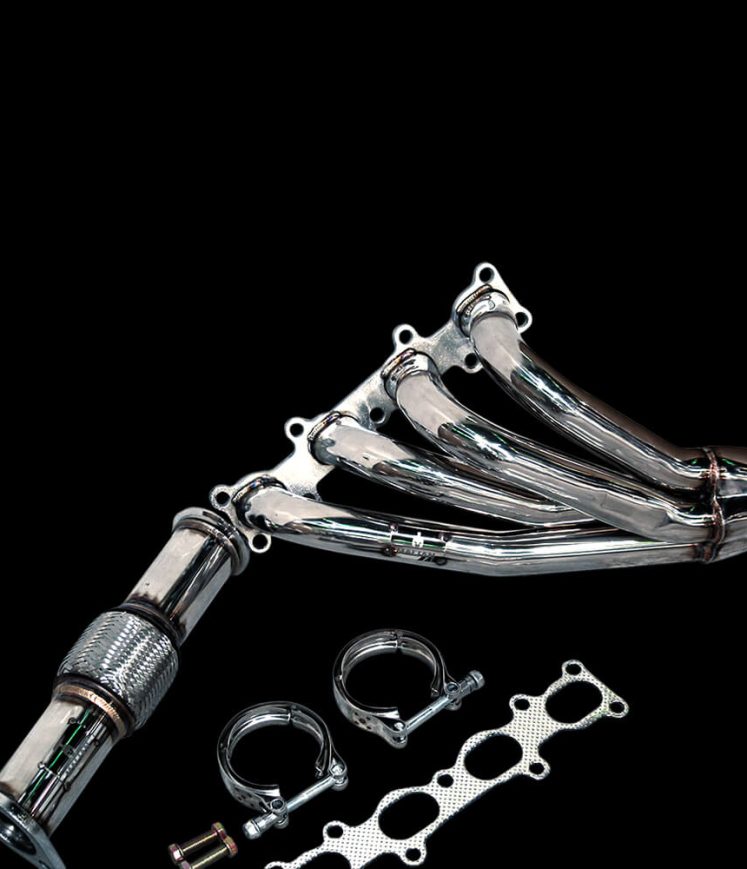

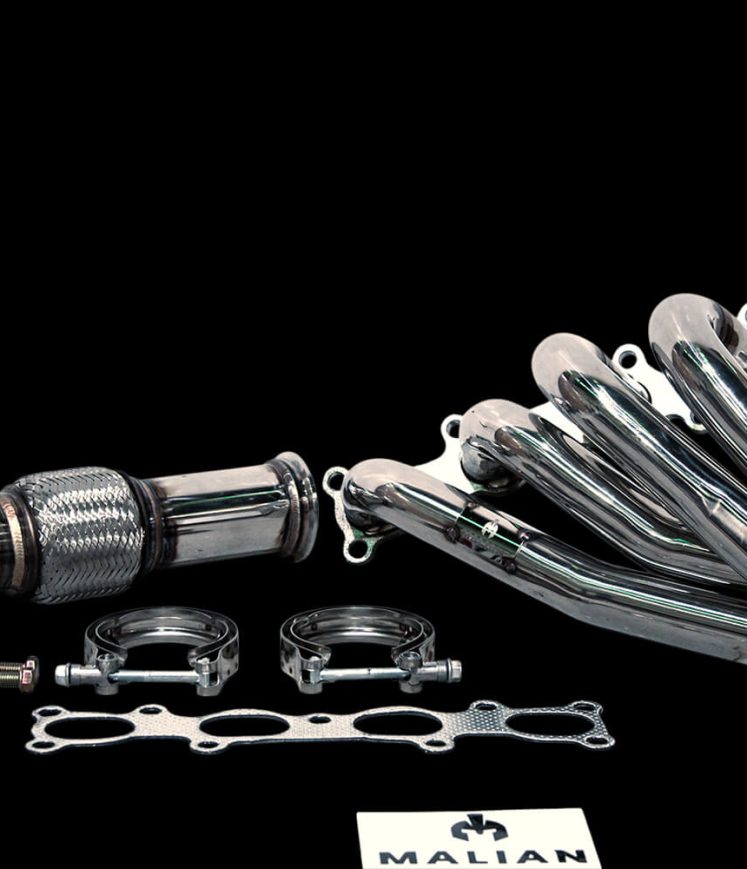

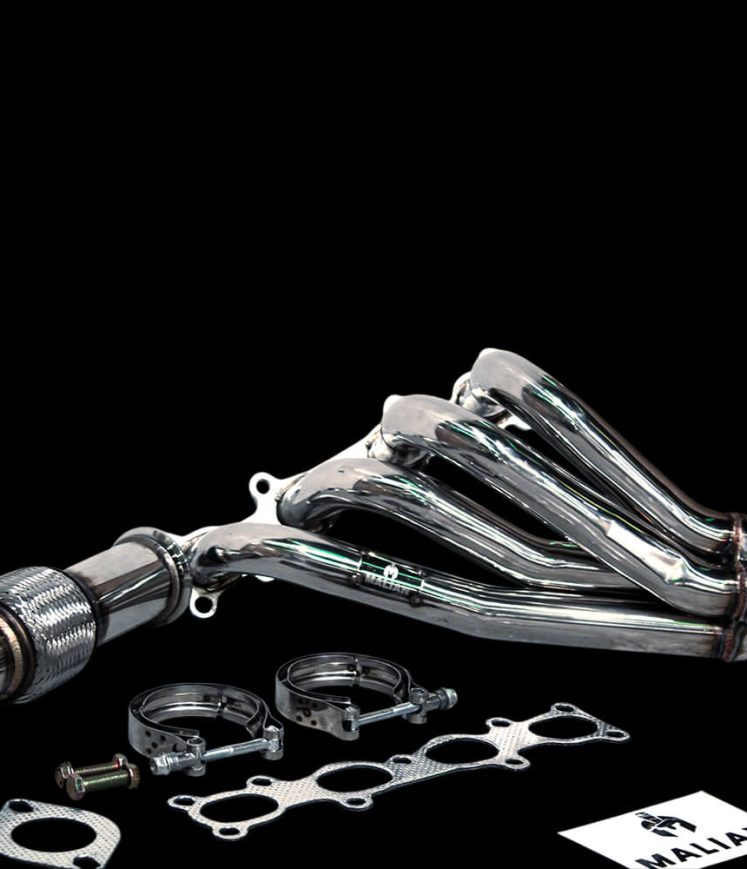

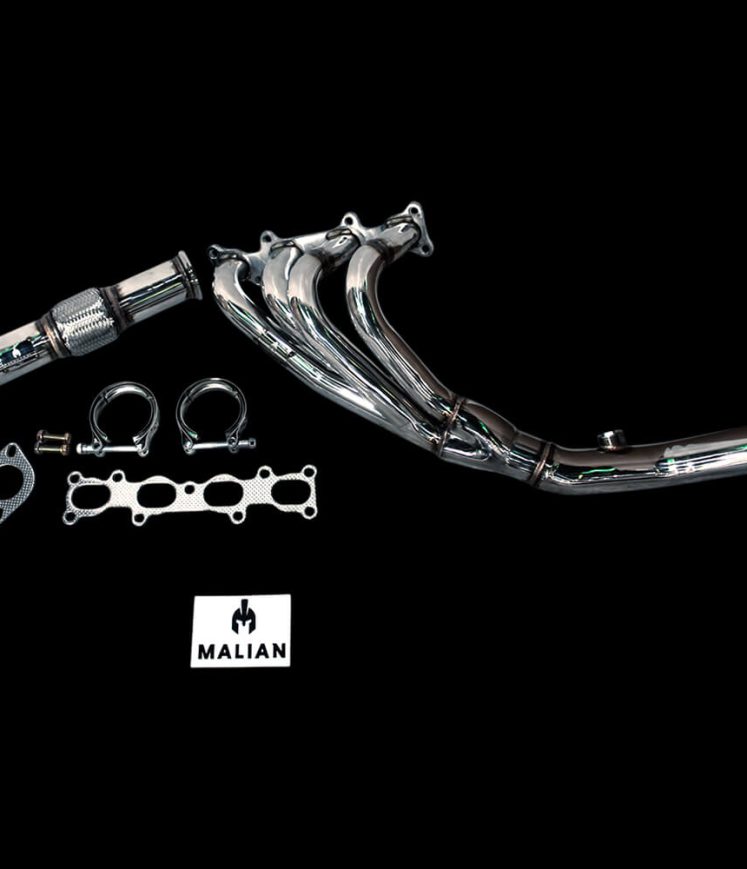

What’s in the box?
- 1 × Fitting Plate
- 1 × Equal-Length Tubular Exhaust Manifold
- 1 × Manifold Adapter Pipe
- 1 × Fitting Kit
| Weight | 9.71 kg |
|---|---|
| Dimensions | 21 × 83 × 33 cm |
| Chassis Code | NA |
| Steering Side | Right Hand Drive or Left Hand Drive |
| Manufacturer | Mazda |
| Engine Size | 1.8 |
| EU Approved | No |
| K-Type Data | 21356, 4056 |
| Part Number | MAL-494 |
| Welding Type | TIG |
| Engine Code | BP |
| 45924 | 18/04 |
| Part | EL Tubular Manifold |
| Tube Diameter | 1.75" to 2.5" |
| Important Notes | Designed to optimise flow and power. For cars with the 440mm cat fitted. May require water pipe to heater core to be adjusted, ask for video if required. Does not fit the later 1997–98 1.8 135 hp model. |
| Production Years | 94-96 |
| Fitting Kit Included? | Yes |
| Model | MX5 / Miata / Eunos Roadster Mk1 |
| Manufacturer Part Number | MAL-494 |
| Condition | New |
|---|
