Mitsubishi Lancer Evo 5/6 Evo 6-Spec Oil Cooler
Evo 6-specification MR464544 replacement cooler. Evo 5 fitment requires Evo 6 oil-cooler lines and corresponding fittings; Evo 4 fitment is not confirmed.

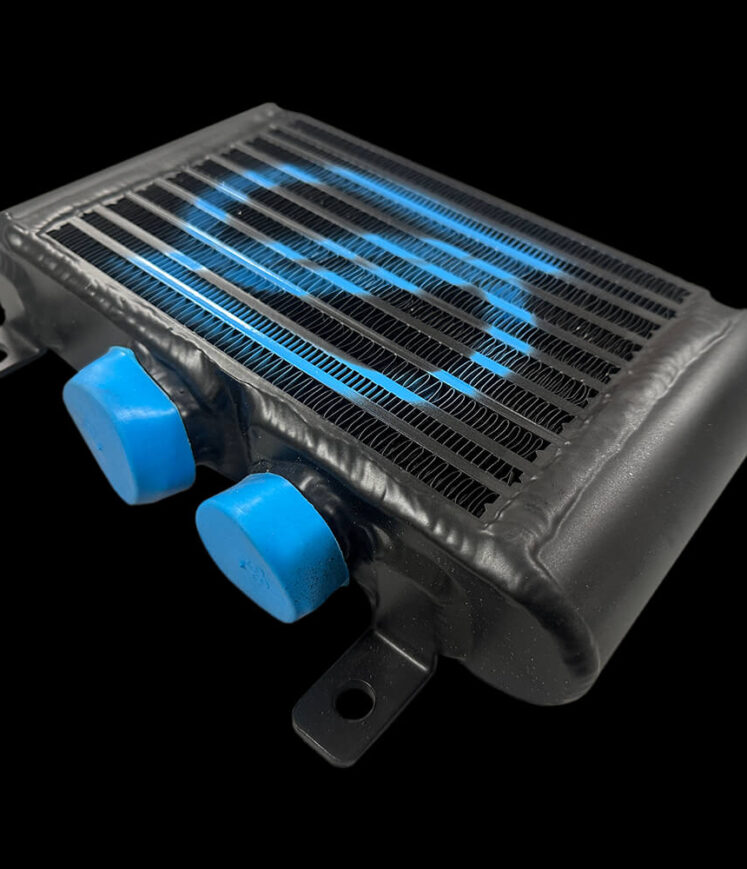

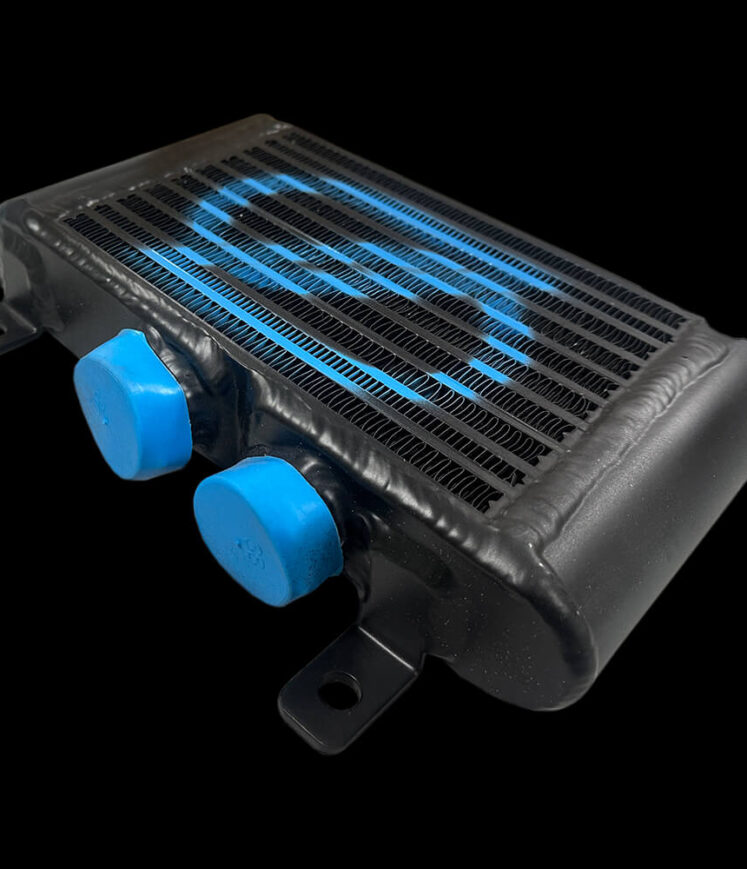

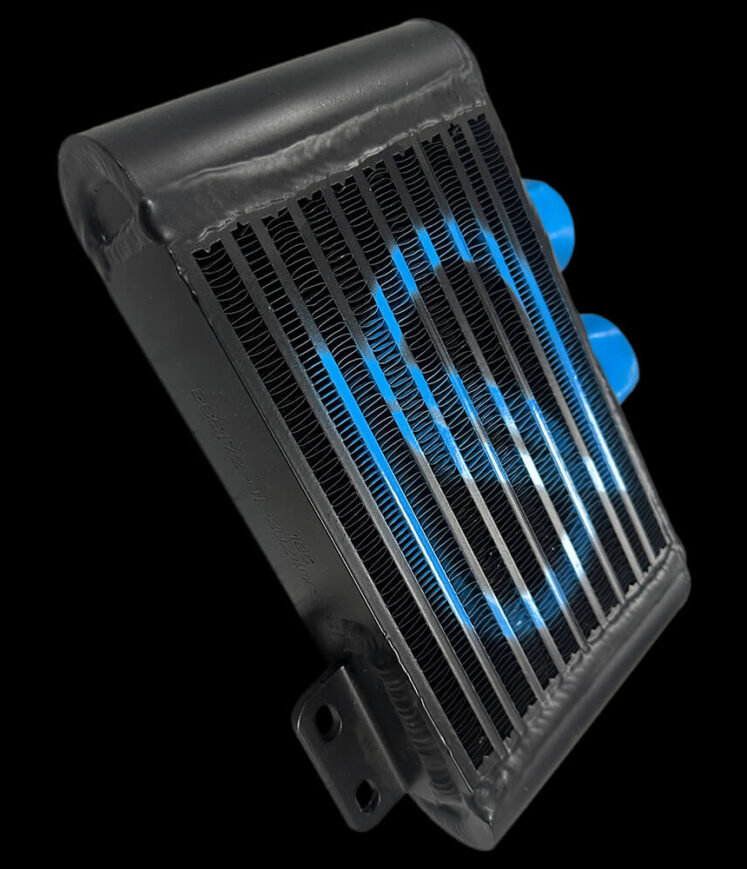

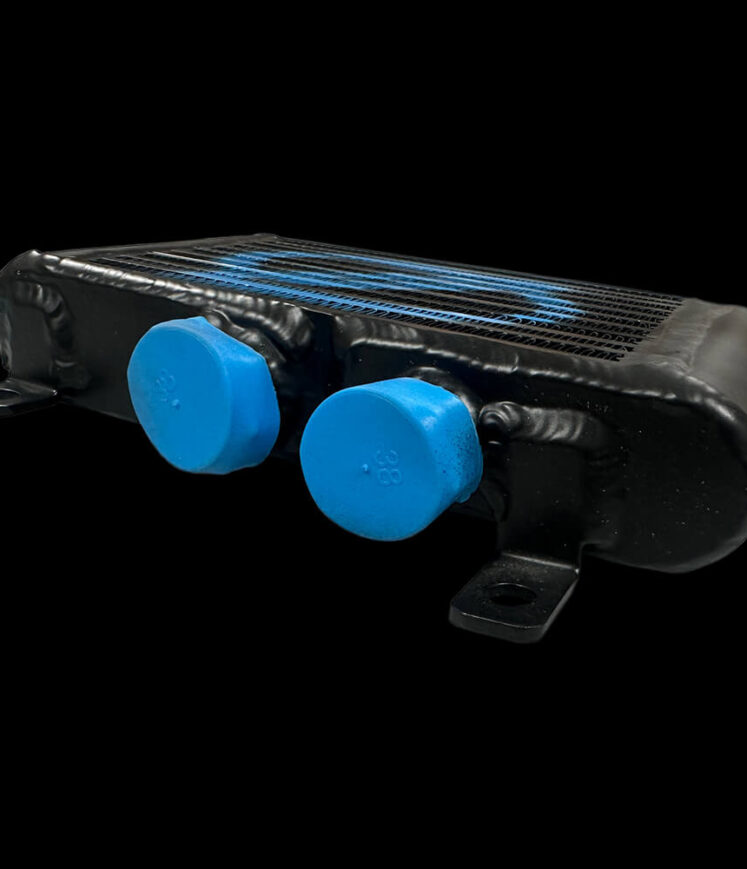

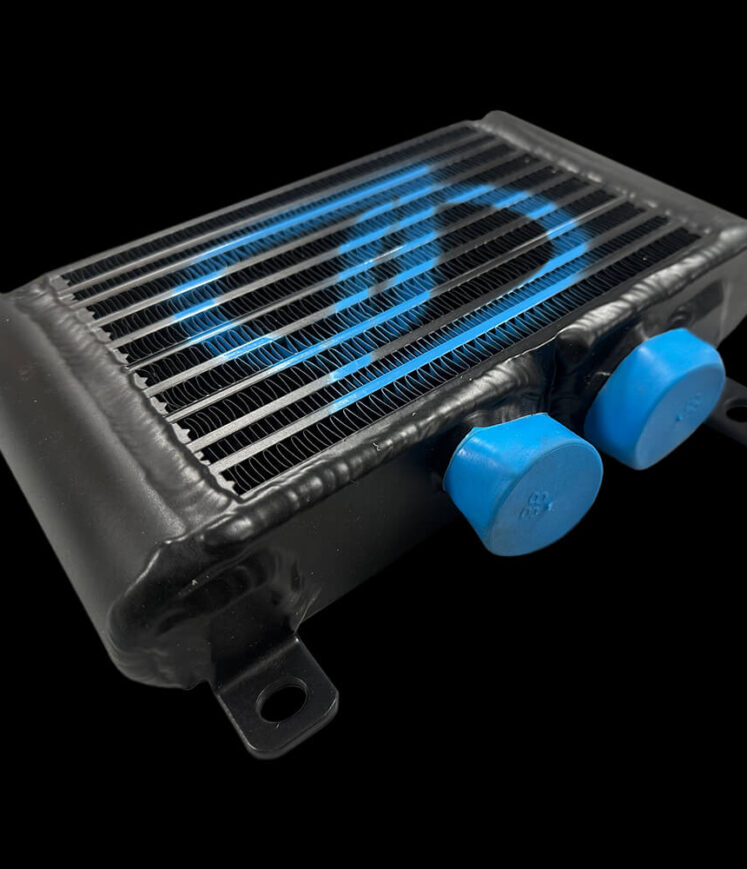

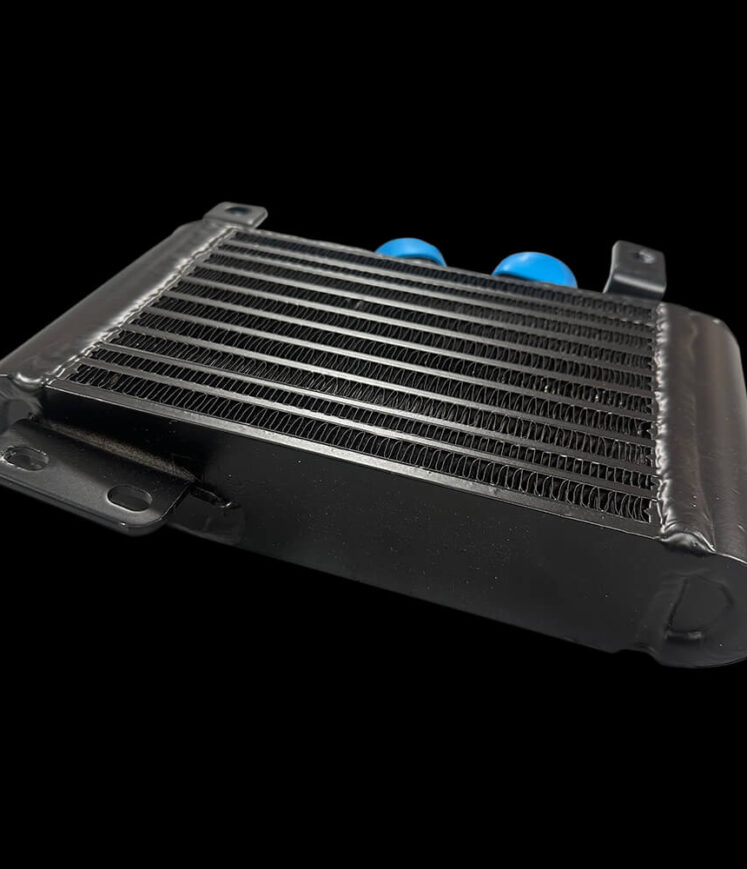

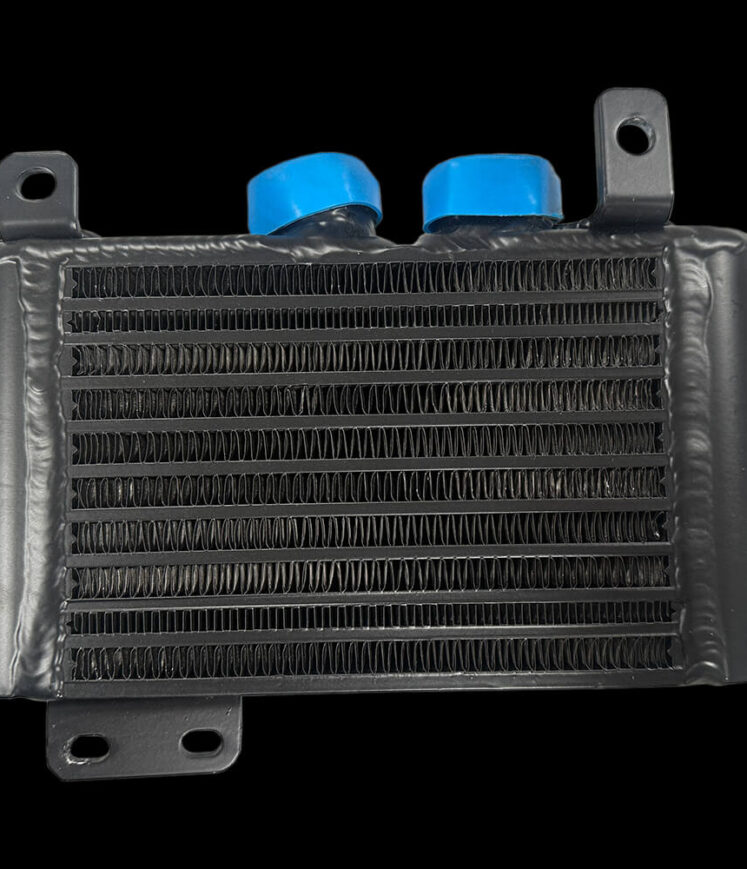

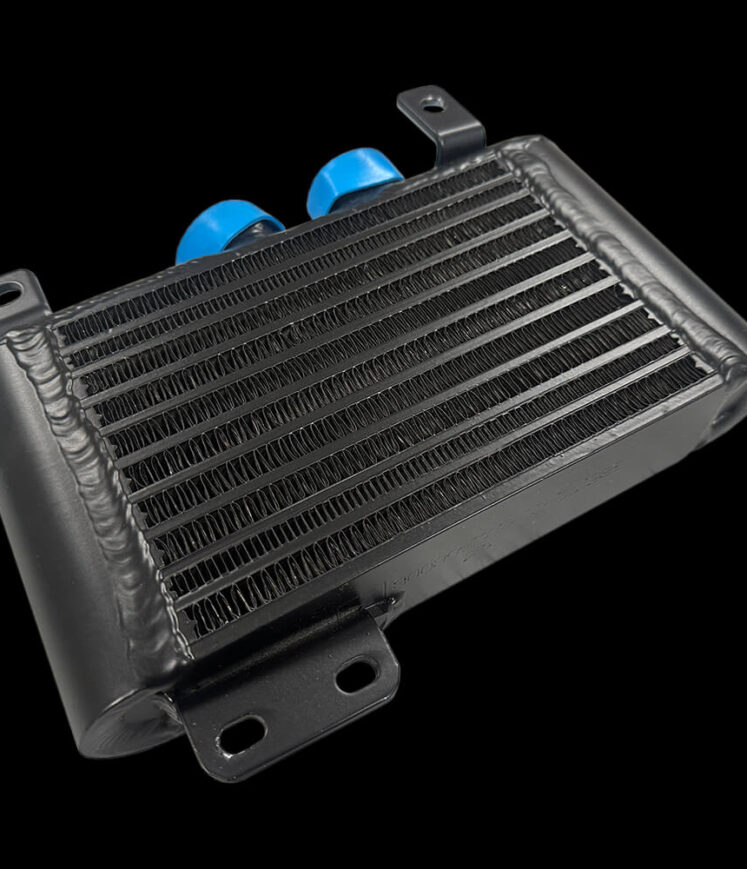

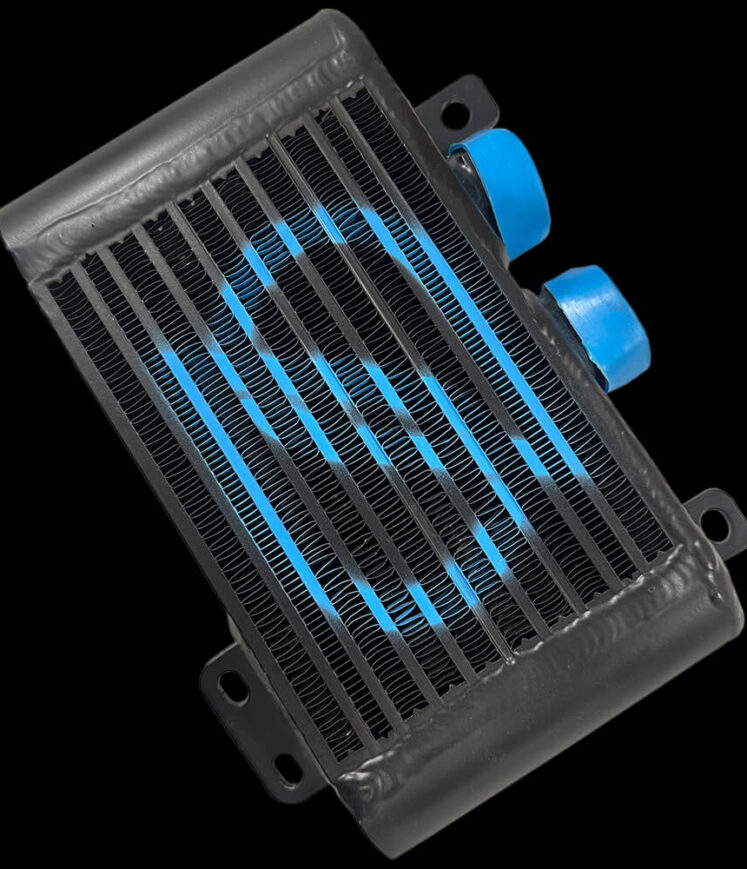

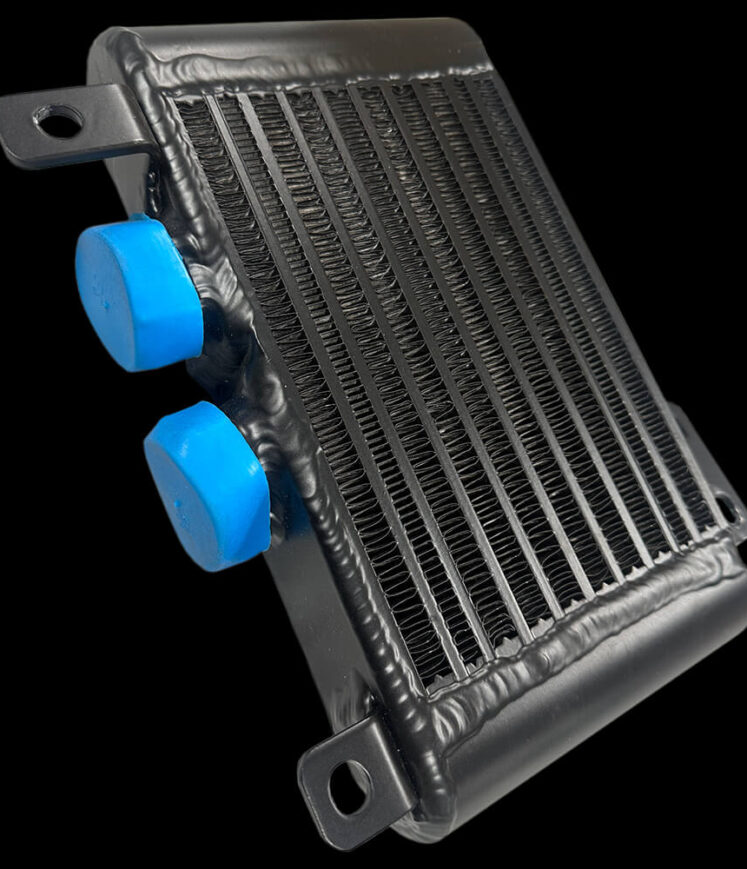

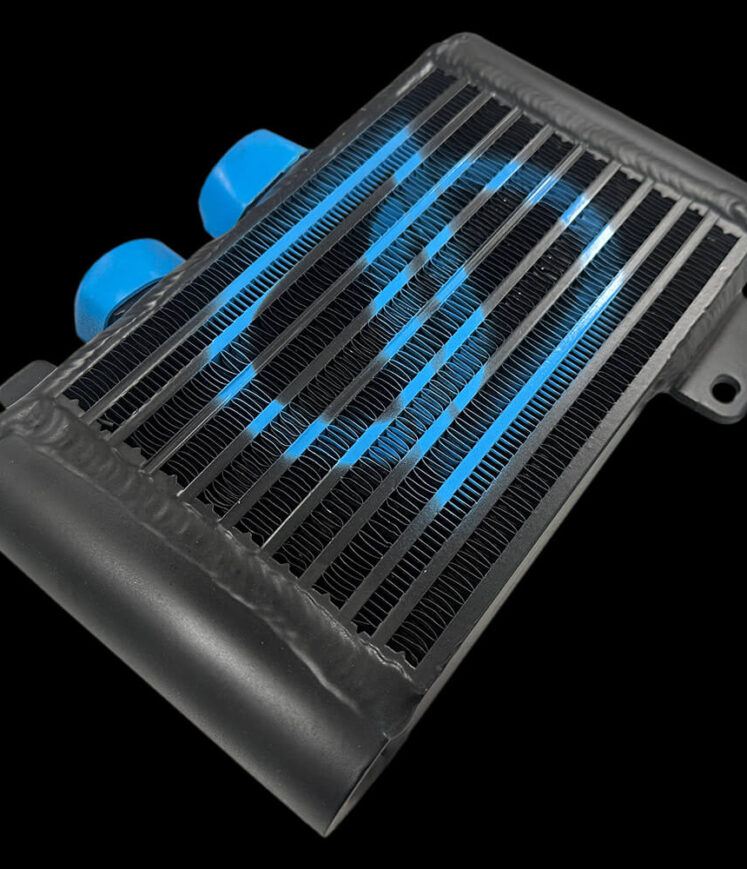

An aluminium replacement for the later Mitsubishi Lancer Evolution VI oil-cooler system, matching OE reference MR464544. It can also be fitted to an Evo V when the car is converted to Evo VI-specification oil-cooler lines and fittings.
Key features
- Direct replacement for OE MR464544
- Direct fit to Evo 6 and Tommi Makinen Edition using Evo 6-specification lines
- Suitable for Evo 5 when converted to Evo 6 feed and return lines
- Reuses the factory cooler location and main mounting position
- Aluminium construction
- Cooler core only
Design details

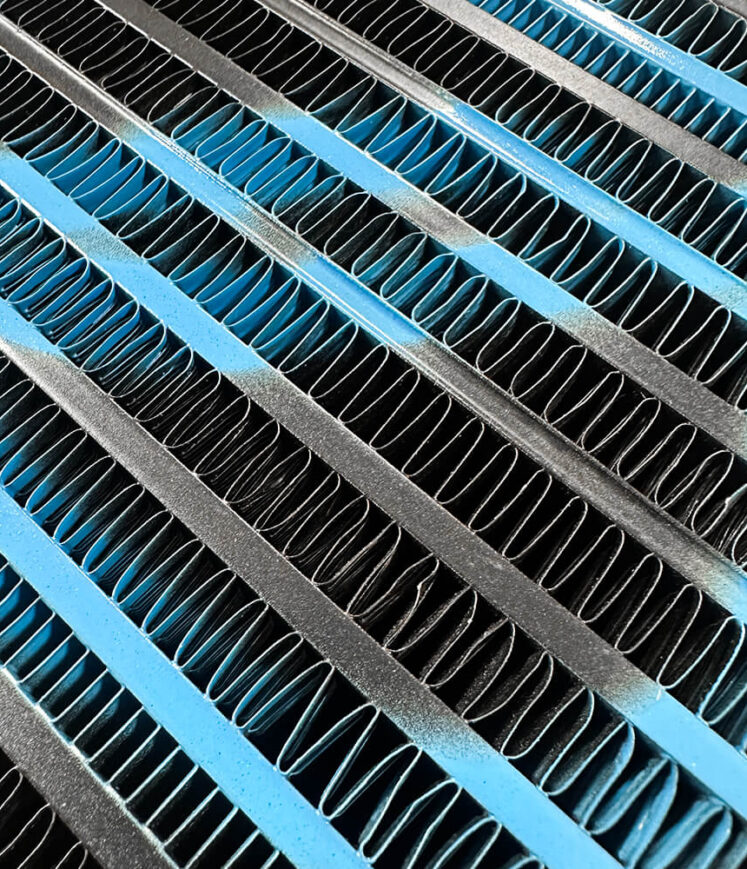

Aluminium oil-cooler core based on the later Evo 6 layout. Mitsubishi retained the main MR281610 mounting bracket but revised the cooler, hoses, oil-line bolts and sealing washers, and added a supplementary bracket when moving from MR431403 to MR464544.
On the car
Replaces an ageing or damaged factory cooler while retaining the later Evo 6-style oil-cooling circuit and original mounting location.
Fitment notes
Direct replacement for Evo 6 and Tommi Makinen Edition vehicles fitted with MR464544 and the corresponding Evo 6 lines. Evo 5 CP9A vehicles originally fitted with MR431403 require Evo 6 feed hose MR464550 and return hose MR464551, with the later banjo bolts, sealing washers and supplementary bracket checked or fitted as required. Evo 4 CN9A fitment is not currently confirmed.
Important: Do not attempt to connect this cooler using the original Evo 5 MR258836/MR258837 lines. Confirm the vehicle, existing cooler part number, port thread and installed lines before ordering. Evo 6-specification lines and fittings are not included. Fit new sealing washers and leak-test the system before use.
Evo 6-specification MR464544 replacement cooler. Evo 5 fitment requires Evo 6 oil-cooler lines and corresponding fittings; Evo 4 fitment is not confirmed.
What’s in the box?
- 1 × SKADI Evo 6-specification replacement oil cooler
| Weight | 2.1 kg |
|---|---|
| Dimensions | 30 × 25 × 10 cm |
| Source Kit SKU | SKO-038 |
| Make | Mitsubishi |
| Model | Lancer Evolution |
| Chassis | Evo 5/6 |
| System Type | ENGINE OIL COOLER |
| Description QA | READY |
| Description v2 | <section class='product-specific-copy kage-copy'><p>An aluminium replacement for the later Mitsubishi Lancer Evolution VI oil-cooler system, matching OE reference MR464544. It can also be fitted to an Evo V when the car is converted to Evo VI-specification oil-cooler lines and fittings.</p><h3>Key features</h3><ul><li>Direct replacement for OE MR464544</li><li>Direct fit to Evo 6 and Tommi Makinen Edition using Evo 6-specification lines</li><li>Suitable for Evo 5 when converted to Evo 6 feed and return lines</li><li>Reuses the factory cooler location and main mounting position</li><li>Aluminium construction</li><li>Cooler core only</li></ul><h3>Design details</h3><p>Aluminium oil-cooler core based on the later Evo 6 layout. Mitsubishi retained the main MR281610 mounting bracket but revised the cooler, hoses, oil-line bolts and sealing washers, and added a supplementary bracket when moving from MR431403 to MR464544.</p><h3>On the car</h3><p>Replaces an ageing or damaged factory cooler while retaining the later Evo 6-style oil-cooling circuit and original mounting location.</p><h3>Fitment notes</h3><p>Direct replacement for Evo 6 and Tommi Makinen Edition vehicles fitted with MR464544 and the corresponding Evo 6 lines. Evo 5 CP9A vehicles originally fitted with MR431403 require Evo 6 feed hose MR464550 and return hose MR464551, with the later banjo bolts, sealing washers and supplementary bracket checked or fitted as required. Evo 4 CN9A fitment is not currently confirmed.</p><p><strong>Important:</strong> Do not attempt to connect this cooler using the original Evo 5 MR258836/MR258837 lines. Confirm the vehicle, existing cooler part number, port thread and installed lines before ordering. Evo 6-specification lines and fittings are not included. Fit new sealing washers and leak-test the system before use.</p><p>Evo 6-specification MR464544 replacement cooler. Evo 5 fitment requires Evo 6 oil-cooler lines and corresponding fittings; Evo 4 fitment is not confirmed.</p><h3>What's in the box?</h3><ul><li>1 × SKADI Evo 6-specification replacement oil cooler</li></ul></section> |
| Important Notes | Do not attempt to connect this cooler using the original Evo 5 MR258836/MR258837 lines. Confirm the vehicle, existing cooler part number, port thread and installed lines before ordering. Evo 6-specification lines and fittings are not included. Fit new sealing washers and leak-test the system before use. |
| Manufacturer Part Number | SKO-038 |
| GTIN, UPC, EAN, or ISBN | 5056178013088 |
| Condition | New |
|---|
